This is the class used to calculate the movement from one stock to other stocks. More...

#include <stray.h>

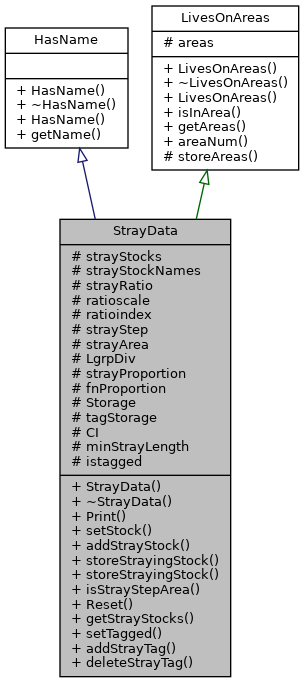

Inheritance diagram for StrayData:

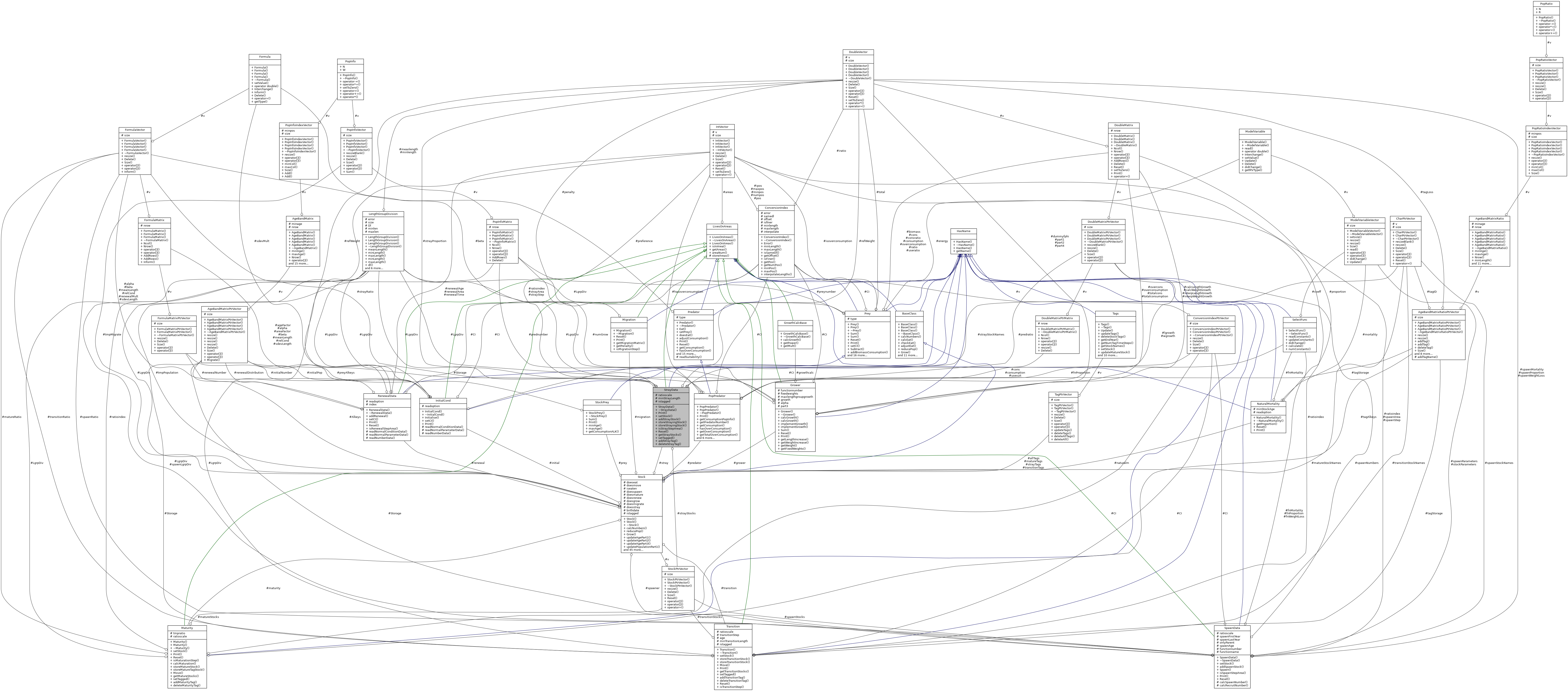

Collaboration diagram for StrayData:

Public Member Functions
	StrayData (CommentStream &infile, const LengthGroupDivision const LgrpDiv, const IntVector &areas, const AreaClass const Area, const char givenname, const TimeClass const TimeInfo, Keeper *const keeper)
	This is the StrayData constructor. More...

	~StrayData ()
	This is the default StrayData destructor. More...

void	Print (ofstream &outfile) const
	This function will print the straying information. More...

void	setStock (StockPtrVector &stockvec)
	This will select the stocks required for the straying process. More...

void	addStrayStock (int area, const TimeClass *const TimeInfo)
	This will move the calculated straying stock from the current stock into the new stock age-length cells. More...

void	storeStrayingStock (int area, AgeBandMatrix &Alkeys, const TimeClass *const TimeInfo)
	This will store the part of the current stock that will stray into other stocks. More...

void	storeStrayingStock (int area, AgeBandMatrix &Alkeys, AgeBandMatrixRatio &TagAlkeys, const TimeClass *const TimeInfo)
	This will store the part of the current stock that will stray into other stocks. More...

int	isStrayStepArea (int area, const TimeClass *const TimeInfo)
	This will check if the straying process will take place on the current timestep. More...

void	Reset (const TimeClass *const TimeInfo)
	This will reset the straying information for the current model run. More...

const StockPtrVector &	getStrayStocks ()
	This will calculate the stocks the current stock can stray into. More...

void	setTagged ()
	This function will initialise the tagging experiments for the straying calculations. More...

void	addStrayTag (const char *tagname)
	This will add a tagging experiment to the straying calculations. More...

void	deleteStrayTag (const char *tagname)
	This will remove a tagging experiment from the straying calculations. More...

Public Member Functions inherited from HasName
	HasName ()
	This is the default HasName constructor. More...

virtual	~HasName ()
	This is the default HasName destructor. More...

	HasName (const char *givenname)
	This is the HasName constructor for a specified name. More...

const char *	getName () const
	This will return a null terminated text string containing the name of the object. More...

Protected Attributes
StockPtrVector	strayStocks
	This is the StockPtrVector of the stocks that the straying fish will move to. More...

CharPtrVector	strayStockNames
	This is the CharPtrVector of the names of the straying stocks. More...

FormulaVector	strayRatio
	This is the FormulaVector of the ratio of the stock that will stray. More...

double	ratioscale
	This is used to scale the ratios to ensure that they will always sum to 1. More...

IntVector	ratioindex
	This is the IntVector used as an index for the ratio vector. More...

IntVector	strayStep
	This is the IntVector of timesteps that the straying will take place on. More...

IntVector	strayArea
	This is the IntVector of areas that the straying will take place on. More...

LengthGroupDivision *	LgrpDiv
	This is the LengthGroupDivision of the stock. More...

DoubleVector	strayProportion
	This is the DoubleVector of the proportion of each length group of the stock that will stray. More...

SelectFunc *	fnProportion
	This is the SelectFunc used to calculate of the proportion of each length group of the stock that will stray. More...

AgeBandMatrixPtrVector	Storage
	This is the AgeBandMatrixPtrVector used to store the calculated straying stocks. More...

AgeBandMatrixRatioPtrVector	tagStorage
	This is the AgeBandMatrixRatioPtrVector used to store the calculated straying tagged stocks. More...

ConversionIndexPtrVector	CI
	This is the ConversionIndexPtrVector used to convert from the current stock lengths to the straying stock lengths. More...

int	minStrayLength
	This is the minimum length group division of the straying stock. More...

int	istagged
	This is the flag used to denote whether the stock has been included in a tagging experiment or not. More...

Protected Attributes inherited from LivesOnAreas
IntVector	areas
	This is the IntVector of internal areas that the object is defined on. More...

Additional Inherited Members
Protected Member Functions inherited from LivesOnAreas
void	storeAreas (const IntVector &Areas)
	This function will store the internal areas to be used. More...

	LivesOnAreas ()
	This is the default LivesOnAreas constructor. More...

virtual	~LivesOnAreas ()
	This is the default LivesOnAreas destructor. More...

	LivesOnAreas (const IntVector &Areas)
	This is the LivesOnAreas constructor for a specified vector of areas. More...

int	isInArea (int area) const
	This function will check whether the object is defined on a specified area. More...

IntVector &	getAreas ()
	This function will return the internal areas that the object is defined on. More...

int	areaNum (int area) const
	This function will return the area associated with an internal area. More...

Detailed Description

This is the class used to calculate the movement from one stock to other stocks.

This class moves a proportion of fish from one stock to the corresponding age-length cell in other stocks. This is an extension to the Transition class, since it can move fish from more than one age group. The length groups of the new stocks are checked, and any fish that haven't yet reached the minimum length of the new stock remain in the original stock.

Constructor & Destructor Documentation

◆ StrayData()

StrayData::StrayData	(	CommentStream &	infile,
		const LengthGroupDivision *const	LgrpDiv,
		const IntVector &	areas,
		const AreaClass *const	Area,
		const char *	givenname,
		const TimeClass *const	TimeInfo,
		Keeper *const	keeper
	)

This is the StrayData constructor.

Parameters

infile	is the CommentStream to read the straying data from
LgrpDiv	is the LengthGroupDivision that the straying stock will be calculated on
areas	is the IntVector of areas that the straying stock will be calculated on
Area	is the AreaClass for the current model
givenname	is the name of the stock for this StrayData class
TimeInfo	is the TimeClass for the current model
keeper	is the Keeper for the current model

◆ ~StrayData()

StrayData::~StrayData ( )

This is the default StrayData destructor.

Member Function Documentation

◆ addStrayStock()

void StrayData::addStrayStock	(	int	area,
		const TimeClass *const	TimeInfo
	)

This will move the calculated straying stock from the current stock into the new stock age-length cells.

Parameters

area	is the area that the straying process is being calculated on
TimeInfo	is the TimeClass for the current model

◆ addStrayTag()

void StrayData::addStrayTag ( const char * tagname )

This will add a tagging experiment to the straying calculations.

Parameters

tagname is the name of the tagging experiment

◆ deleteStrayTag()

void StrayData::deleteStrayTag ( const char * tagname )

This will remove a tagging experiment from the straying calculations.

Parameters

tagname is the name of the tagging experiment

◆ getStrayStocks()

const StockPtrVector & StrayData::getStrayStocks ( )

This will calculate the stocks the current stock can stray into.

Returns: stray stocks

◆ isStrayStepArea()

int StrayData::isStrayStepArea	(	int	area,
		const TimeClass *const	TimeInfo
	)

This will check if the straying process will take place on the current timestep.

Parameters

area	is the area that the straying is being calculated on
TimeInfo	is the TimeClass for the current model

Returns: 1 if the straying process will take place, 0 otherwise

◆ Print()

void StrayData::Print ( ofstream & outfile ) const

This function will print the straying information.

Parameters

outfile is the ofstream that all the model information gets sent to

◆ Reset()

void StrayData::Reset ( const TimeClass *const TimeInfo )

This will reset the straying information for the current model run.

Parameters

TimeInfo is the TimeClass for the current model

◆ setStock()

void StrayData::setStock ( StockPtrVector & stockvec )

This will select the stocks required for the straying process.

Parameters

stockvec is the StockPtrVector of all the available stocks

◆ setTagged()

void StrayData::setTagged ( )

This function will initialise the tagging experiments for the straying calculations.

◆ storeStrayingStock() [1/2]

void StrayData::storeStrayingStock	(	int	area,
		AgeBandMatrix &	Alkeys,
		AgeBandMatrixRatio &	TagAlkeys,
		const TimeClass *const	TimeInfo
	)

This will store the part of the current stock that will stray into other stocks.

Parameters

area	is the area that the straying is being calculated on
Alkeys	is the AgeBandMatrix of the stock that fish will move from
TagAlkeys	is the AgeBandMatrixRatio of the tagged stock that fish will move from
TimeInfo	is the TimeClass for the current model

◆ storeStrayingStock() [2/2]

void StrayData::storeStrayingStock	(	int	area,
		AgeBandMatrix &	Alkeys,
		const TimeClass *const	TimeInfo
	)

This will store the part of the current stock that will stray into other stocks.

Parameters

area	is the area that the straying is being calculated on
Alkeys	is the AgeBandMatrix of the stock that fish will move from
TimeInfo	is the TimeClass for the current model

Member Data Documentation

◆ CI

ConversionIndexPtrVector StrayData::CI

protected

This is the ConversionIndexPtrVector used to convert from the current stock lengths to the straying stock lengths.

◆ fnProportion

SelectFunc* StrayData::fnProportion

protected

This is the SelectFunc used to calculate of the proportion of each length group of the stock that will stray.

◆ istagged

int StrayData::istagged

protected

This is the flag used to denote whether the stock has been included in a tagging experiment or not.

◆ LgrpDiv

LengthGroupDivision* StrayData::LgrpDiv

protected

This is the LengthGroupDivision of the stock.

◆ minStrayLength

int StrayData::minStrayLength

protected

This is the minimum length group division of the straying stock.

◆ ratioindex

IntVector StrayData::ratioindex

protected

This is the IntVector used as an index for the ratio vector.

◆ ratioscale

double StrayData::ratioscale

protected

This is used to scale the ratios to ensure that they will always sum to 1.

◆ Storage

AgeBandMatrixPtrVector StrayData::Storage

protected

This is the AgeBandMatrixPtrVector used to store the calculated straying stocks.

◆ strayArea

IntVector StrayData::strayArea

protected

This is the IntVector of areas that the straying will take place on.

◆ strayProportion

DoubleVector StrayData::strayProportion

protected

This is the DoubleVector of the proportion of each length group of the stock that will stray.

◆ strayRatio

FormulaVector StrayData::strayRatio

protected

This is the FormulaVector of the ratio of the stock that will stray.

◆ strayStep

IntVector StrayData::strayStep

protected

This is the IntVector of timesteps that the straying will take place on.

◆ strayStockNames

CharPtrVector StrayData::strayStockNames

protected

This is the CharPtrVector of the names of the straying stocks.

◆ strayStocks

StockPtrVector StrayData::strayStocks

protected

This is the StockPtrVector of the stocks that the straying fish will move to.

◆ tagStorage

AgeBandMatrixRatioPtrVector StrayData::tagStorage

protected

This is the AgeBandMatrixRatioPtrVector used to store the calculated straying tagged stocks.

The documentation for this class was generated from the following files:

src/include/stray.h
src/stray.cc
