This is the class used to calculate the movement from a young stock to older stocks. More...

#include <transition.h>

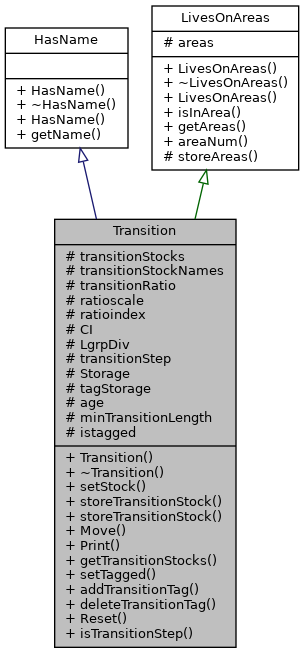

Inheritance diagram for Transition:

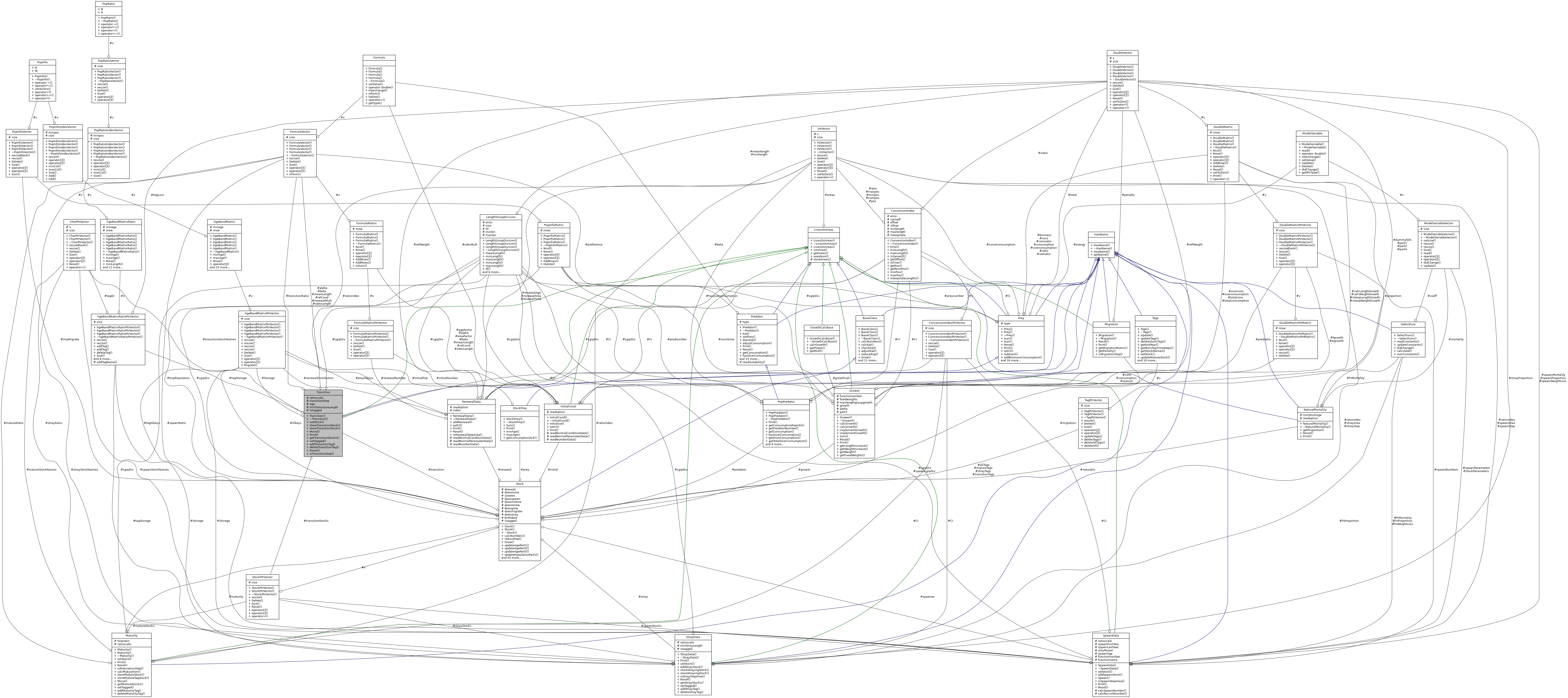

Collaboration diagram for Transition:

Public Member Functions
	Transition (CommentStream &infile, const IntVector &areas, int age, const LengthGroupDivision const lgrpdiv, const char givenname, const TimeClass const TimeInfo, Keeper const keeper)
	This is the Transition constructor. More...

	~Transition ()
	This is the default Transition destructor. More...

void	setStock (StockPtrVector &stockvec)
	This will select the stocks required for the movement between stocks. More...

void	storeTransitionStock (int area, AgeBandMatrix &Alkeys, const TimeClass *const TimeInfo)
	This will store the part of the younger stock that will move into the older stocks. More...

void	storeTransitionStock (int area, AgeBandMatrix &Alkeys, AgeBandMatrixRatio &TagAlkeys, const TimeClass *const TimeInfo)
	This will store the part of the younger stock that will move into the older stocks. More...

void	Move (int area, const TimeClass *const TimeInfo)
	This will move the younger stock into the older stock age-length cells. More...

void	Print (ofstream &outfile) const
	This function will print the transition information. More...

const StockPtrVector &	getTransitionStocks ()
	This will calculate the stocks the young stock can move into. More...

void	setTagged ()
	This function will initialise the tagging experiments for the transition calculations. More...

void	addTransitionTag (const char *tagname)
	This will add a tagging experiment to the transition calculations. More...

void	deleteTransitionTag (const char *tagname)
	This will remove a tagging experiment from the transition calculations. More...

void	Reset ()
	This function will reset the transition data. More...

virtual int	isTransitionStep (const TimeClass *const TimeInfo)
	This will check if the transition process will take place on the current timestep. More...

Public Member Functions inherited from HasName
	HasName ()
	This is the default HasName constructor. More...

virtual	~HasName ()
	This is the default HasName destructor. More...

	HasName (const char *givenname)
	This is the HasName constructor for a specified name. More...

const char *	getName () const
	This will return a null terminated text string containing the name of the object. More...

Protected Attributes
StockPtrVector	transitionStocks
	This is the StockPtrVector of the stocks that the young stock will move to. More...

CharPtrVector	transitionStockNames
	This is the CharPtrVector of the names of the transition stocks. More...

FormulaVector	transitionRatio
	This is the FormulaVector of the ratio of the young stock to move into each older stock. More...

double	ratioscale
	This is used to scale the ratios to ensure that they will always sum to 1. More...

IntVector	ratioindex
	This is the IntVector used as an index for the ratio vector. More...

ConversionIndexPtrVector	CI
	This is the ConversionIndexPtrVector used to convert from the young stock lengths to the old stock lengths. More...

LengthGroupDivision *	LgrpDiv
	This is the LengthGroupDivision of the stock. More...

int	transitionStep
	This is the timestep that the movement between stocks will occur on. More...

AgeBandMatrixPtrVector	Storage
	This is the AgeBandMatrixPtrVector used to store the calculated old stocks. More...

AgeBandMatrixRatioPtrVector	tagStorage
	This is the AgeBandMatrixRatioPtrVector used to store the calculated tagged stocks. More...

int	age
	This is the age that the younger stock will move into the older stocks. More...

int	minTransitionLength
	This is the minimum length group of the younger stock that exists in the older stock. More...

int	istagged
	This is the flag used to denote whether the stock has been included in a tagging experiment or not. More...

Protected Attributes inherited from LivesOnAreas
IntVector	areas
	This is the IntVector of internal areas that the object is defined on. More...

Additional Inherited Members
Protected Member Functions inherited from LivesOnAreas
void	storeAreas (const IntVector &Areas)
	This function will store the internal areas to be used. More...

	LivesOnAreas ()
	This is the default LivesOnAreas constructor. More...

virtual	~LivesOnAreas ()
	This is the default LivesOnAreas destructor. More...

	LivesOnAreas (const IntVector &Areas)
	This is the LivesOnAreas constructor for a specified vector of areas. More...

int	isInArea (int area) const
	This function will check whether the object is defined on a specified area. More...

IntVector &	getAreas ()
	This function will return the internal areas that the object is defined on. More...

int	areaNum (int area) const
	This function will return the area associated with an internal area. More...

Detailed Description

This is the class used to calculate the movement from a young stock to older stocks.

This class moves the oldest age group of a young stock up to older stocks. This is a simpler method than the Maturity classes of moving fish between stocks, and is used to move the fish that haven't matured according to the maturation functions. The length groups of the older stocks are checked, and any fish that haven't yet reached the minimum length of the older stock remain in the younger stock, effectively as an age-plus group.

Constructor & Destructor Documentation

◆ Transition()

Transition::Transition	(	CommentStream &	infile,
		const IntVector &	areas,
		int	age,
		const LengthGroupDivision *const	lgrpdiv,
		const char *	givenname,
		const TimeClass *const	TimeInfo,
		Keeper *const	keeper
	)

This is the Transition constructor.

Parameters

infile	is the CommentStream to read the transition data from
areas	is the IntVector of areas that the movements will be calculated on
age	is the maximum age for the (young) stock
lgrpdiv	is the LengthGroupDivision for the stock
givenname	is the name of the stock for this Transition class
TimeInfo	is the TimeClass for the current model
keeper	is the Keeper for the current model

◆ ~Transition()

Transition::~Transition ( )

This is the default Transition destructor.

Member Function Documentation

◆ addTransitionTag()

void Transition::addTransitionTag ( const char * tagname )

This will add a tagging experiment to the transition calculations.

Parameters

tagname is the name of the tagging experiment

◆ deleteTransitionTag()

void Transition::deleteTransitionTag ( const char * tagname )

This will remove a tagging experiment from the transition calculations.

Parameters

tagname is the name of the tagging experiment

◆ getTransitionStocks()

const StockPtrVector & Transition::getTransitionStocks ( )

This will calculate the stocks the young stock can move into.

Returns: transition stocks

◆ isTransitionStep()

int Transition::isTransitionStep ( const TimeClass *const TimeInfo )

virtual

This will check if the transition process will take place on the current timestep.

Parameters

TimeInfo is the TimeClass for the current model

Returns: 1 if the transition process will take place, 0 otherwise

◆ Move()

void Transition::Move	(	int	area,
		const TimeClass *const	TimeInfo
	)

This will move the younger stock into the older stock age-length cells.

Parameters

area	is the area that the movement is being calculated on
TimeInfo	is the TimeClass for the current model

◆ Print()

void Transition::Print ( ofstream & outfile ) const

This function will print the transition information.

Parameters

outfile is the ofstream that all the model information gets sent to

◆ Reset()

void Transition::Reset ( )

This function will reset the transition data.

◆ setStock()

void Transition::setStock ( StockPtrVector & stockvec )

This will select the stocks required for the movement between stocks.

Parameters

stockvec is the StockPtrVector of all the available stocks

◆ setTagged()

void Transition::setTagged ( )

This function will initialise the tagging experiments for the transition calculations.

◆ storeTransitionStock() [1/2]

void Transition::storeTransitionStock	(	int	area,
		AgeBandMatrix &	Alkeys,
		AgeBandMatrixRatio &	TagAlkeys,
		const TimeClass *const	TimeInfo
	)

This will store the part of the younger stock that will move into the older stocks.

Parameters

area	is the area that the transition is being calculated on
Alkeys	is the AgeBandMatrix of the stock that fish will move from
TagAlkeys	is the AgeBandMatrixRatio of the tagged stock that fish will move from
TimeInfo	is the TimeClass for the current model

◆ storeTransitionStock() [2/2]

void Transition::storeTransitionStock	(	int	area,
		AgeBandMatrix &	Alkeys,
		const TimeClass *const	TimeInfo
	)

This will store the part of the younger stock that will move into the older stocks.

Parameters

area	is the area that the transition is being calculated on
Alkeys	is the AgeBandMatrix of the stock that fish will move from
TimeInfo	is the TimeClass for the current model

Member Data Documentation

◆ age

int Transition::age

protected

This is the age that the younger stock will move into the older stocks.

◆ CI

ConversionIndexPtrVector Transition::CI

protected

This is the ConversionIndexPtrVector used to convert from the young stock lengths to the old stock lengths.

◆ istagged

int Transition::istagged

protected

This is the flag used to denote whether the stock has been included in a tagging experiment or not.

◆ LgrpDiv

LengthGroupDivision* Transition::LgrpDiv

protected

This is the LengthGroupDivision of the stock.

◆ minTransitionLength

int Transition::minTransitionLength

protected

This is the minimum length group of the younger stock that exists in the older stock.

◆ ratioindex

IntVector Transition::ratioindex

protected

This is the IntVector used as an index for the ratio vector.

◆ ratioscale

double Transition::ratioscale

protected

This is used to scale the ratios to ensure that they will always sum to 1.

◆ Storage

AgeBandMatrixPtrVector Transition::Storage

protected

This is the AgeBandMatrixPtrVector used to store the calculated old stocks.

◆ tagStorage

AgeBandMatrixRatioPtrVector Transition::tagStorage

protected

This is the AgeBandMatrixRatioPtrVector used to store the calculated tagged stocks.

◆ transitionRatio

FormulaVector Transition::transitionRatio

protected

This is the FormulaVector of the ratio of the young stock to move into each older stock.

◆ transitionStep

int Transition::transitionStep

protected

This is the timestep that the movement between stocks will occur on.

◆ transitionStockNames

CharPtrVector Transition::transitionStockNames

protected

This is the CharPtrVector of the names of the transition stocks.

◆ transitionStocks

StockPtrVector Transition::transitionStocks

protected

This is the StockPtrVector of the stocks that the young stock will move to.

The documentation for this class was generated from the following files:

src/include/transition.h
src/transition.cc
