This class implements a vector of PopInfoIndexVector values, indexed from minage not 0. More...

#include <agebandmatrix.h>

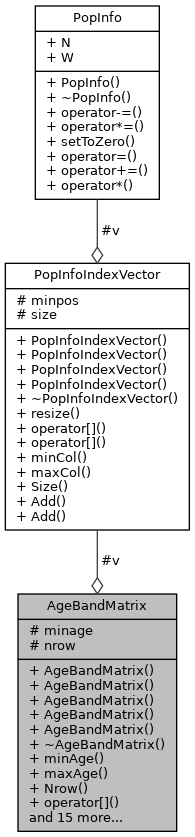

Collaboration diagram for AgeBandMatrix:

Public Member Functions
	AgeBandMatrix ()
	This is the default AgeBandMatrix constructor. More...

	AgeBandMatrix (int age, const IntVector &minl, const IntVector &size)
	This is the AgeBandMatrix constructor for a specified minimum age and size. More...

	AgeBandMatrix (int age, const PopInfoMatrix &initial, int minl)
	This is the AgeBandMatrix constructor for a specified minimum age and initial value. More...

	AgeBandMatrix (int age, const PopInfoIndexVector &initial)
	This is the AgeBandMatrix constructor for a specified minimum age and initial value. More...

	AgeBandMatrix (const AgeBandMatrix &initial)
	This is the AgeBandMatrix constructor that creates a copy of an existing AgeBandMatrix. More...

	~AgeBandMatrix ()
	This is the AgeBandMatrix destructor. More...

int	minAge () const
	This will return the minimum age of the population stored in the vector. More...

int	maxAge () const
	This will return the maximum age of the population stored in the vector. More...

int	Nrow () const
	This will return the number of rows of the vector. More...

PopInfoIndexVector &	operator[] (int age)
	This will return the value of an element of the vector. More...

const PopInfoIndexVector &	operator[] (int age) const
	This will return the value of an element of the vector. More...

int	minLength (int age) const
	This will return the minimum length of an age group stored in the vector. More...

int	maxLength (int age) const
	This will return the maximum length of an age group stored in the vector. More...

void	sumColumns (PopInfoVector &Result) const
	This function will sum the columns of each element stored in the vector (ie sum over all ages for each length group of the population) More...

void	Subtract (const DoubleVector &Ratio, const ConversionIndex &CI)
	This function will subtract a multiplicative ratio from each element stored in the vector. More...

void	Multiply (const DoubleVector &Ratio)
	This function will multiply each element stored in the vector by a constant. More...

void	setToZero ()
	This function will set the population stored in the vector to zero. More...

void	IncrementAge ()
	This function will increase the age of the population stored in the vector to zero. More...

void	printNumbers (ofstream &outfile) const
	This function will print the numbers of the population stored in the vector. More...

void	printWeights (ofstream &outfile) const
	This function will print the mean weights of the population stored in the vector. More...

void	Grow (const DoubleMatrix &Lgrowth, const DoubleMatrix &Wgrowth)
	This function will increase the length and mean weight of the population stored in the vector, according to values calculated by the GrowthCalc calculations for the population. More...

void	Grow (const DoubleMatrix &Lgrowth, const DoubleMatrix &Wgrowth, Maturity *const Mat, int area)
	This function will increase the length and mean weight of the population stored in the vector, according to values calculated by the GrowthCalc and Maturity calculations for the population. More...

void	Grow (const DoubleMatrix &Lgrowth, const DoubleVector &Weight)
	This function will increase the length of the population stored in the vector, according to values calculated by the GrowthCalc calculations for the population. More...

void	Grow (const DoubleMatrix &Lgrowth, const DoubleVector &Weight, Maturity *const Mat, int area)
	This function will increase the length and mean weight of the population stored in the vector, according to values calculated by the GrowthCalc and Maturity calculations for the population. More...

void	Add (const AgeBandMatrix &Addition, const ConversionIndex &CI, double ratio=1.0)
	This function will add a AgeBandMatrix to the current vector. More...

Protected Attributes
int	minage
	This is the index for the vector. More...

int	nrow
	This is number of rows of the vector. More...

PopInfoIndexVector **	v
	This is the indexed vector of PopInfoIndexVector values. More...

Detailed Description

This class implements a vector of PopInfoIndexVector values, indexed from minage not 0.

Constructor & Destructor Documentation

◆ AgeBandMatrix() [1/5]

AgeBandMatrix::AgeBandMatrix ( )

inline

This is the default AgeBandMatrix constructor.

◆ AgeBandMatrix() [2/5]

AgeBandMatrix::AgeBandMatrix	(	int	age,
		const IntVector &	minl,
		const IntVector &	size
	)

This is the AgeBandMatrix constructor for a specified minimum age and size.

Parameters

age	is the minimum index of the vector to be created
minl	is the IntVector of minimum lengths used when constructing the entries of the vector
size	is the IntVector of sizes used when constructing the entries of the vector

◆ AgeBandMatrix() [3/5]

AgeBandMatrix::AgeBandMatrix	(	int	age,
		const PopInfoMatrix &	initial,
		int	minl
	)

This is the AgeBandMatrix constructor for a specified minimum age and initial value.

Parameters

age	is the minimum index of the vector to be created
initial	is the initial value for all the entries of the vector
minl	is the minimum length used when constructing the entries of the vector

◆ AgeBandMatrix() [4/5]

AgeBandMatrix::AgeBandMatrix	(	int	age,
		const PopInfoIndexVector &	initial
	)

This is the AgeBandMatrix constructor for a specified minimum age and initial value.

Parameters

age	is the minimum index of the vector to be created
initial	is the initial value for the entry of the vector

Note: There will only be one entry on the vector created with this constructor

◆ AgeBandMatrix() [5/5]

AgeBandMatrix::AgeBandMatrix ( const AgeBandMatrix & initial )

This is the AgeBandMatrix constructor that creates a copy of an existing AgeBandMatrix.

Parameters

initial is the AgeBandMatrix to copy

◆ ~AgeBandMatrix()

AgeBandMatrix::~AgeBandMatrix ( )

This is the AgeBandMatrix destructor.

Note: This will free all the memory allocated to all the elements of the vector

Member Function Documentation

◆ Add()

void AgeBandMatrix::Add	(	const AgeBandMatrix &	Addition,
		const ConversionIndex &	CI,
		double	ratio = `1.0`
	)

This function will add a AgeBandMatrix to the current vector.

Parameters

Addition	is the AgeBandMatrix that will be added to the current vector
CI	is the ConversionIndex that will convert between the length groups of the 2 vectors
ratio	is a multiplicative constant applied to each entry (default value 1.0)

◆ Grow() [1/4]

void AgeBandMatrix::Grow	(	const DoubleMatrix &	Lgrowth,
		const DoubleMatrix &	Wgrowth
	)

This function will increase the length and mean weight of the population stored in the vector, according to values calculated by the GrowthCalc calculations for the population.

Parameters

Lgrowth	is the DoubleMatrix of the calculated change in length due to the growth
Wgrowth	is the DoubleMatrix of the calculated change in mean weight due to the growth

◆ Grow() [2/4]

void AgeBandMatrix::Grow	(	const DoubleMatrix &	Lgrowth,
		const DoubleMatrix &	Wgrowth,
		Maturity *const	Mat,
		int	area
	)

This function will increase the length and mean weight of the population stored in the vector, according to values calculated by the GrowthCalc and Maturity calculations for the population.

Parameters

Lgrowth	is the DoubleMatrix of the calculated change in length due to the growth
Wgrowth	is the DoubleMatrix of the calculated change in mean weight due to the growth
Mat	is the Maturity used to calculate (and store) the proportion that population that will mature
area	is the identifier for the are used for the maturation process

◆ Grow() [3/4]

void AgeBandMatrix::Grow	(	const DoubleMatrix &	Lgrowth,
		const DoubleVector &	Weight
	)

This function will increase the length of the population stored in the vector, according to values calculated by the GrowthCalc calculations for the population.

Parameters

Lgrowth	is the DoubleMatrix of the calculated change in length due to the growth
Weight	is the DoubleVector of the specified mean weight of the population

Note: The mean weight of the population is fixed to values specified in the input file for the population

◆ Grow() [4/4]

void AgeBandMatrix::Grow	(	const DoubleMatrix &	Lgrowth,
		const DoubleVector &	Weight,
		Maturity *const	Mat,
		int	area
	)

This function will increase the length and mean weight of the population stored in the vector, according to values calculated by the GrowthCalc and Maturity calculations for the population.

Parameters

Lgrowth	is the DoubleMatrix of the calculated change in length due to the growth
Weight	is the DoubleVector of the specified mean weight of the population
Mat	is the Maturity used to calculate (and store) the proportion that population that will mature
area	is the identifier for the are used for the maturation process

Note: The mean weight of the population is fixed to values specified in the input file for the population

◆ IncrementAge()

void AgeBandMatrix::IncrementAge ( )

This function will increase the age of the population stored in the vector to zero.

◆ maxAge()

int AgeBandMatrix::maxAge ( ) const

inline

This will return the maximum age of the population stored in the vector.

Returns: maximum age

◆ maxLength()

int AgeBandMatrix::maxLength ( int age ) const

inline

This will return the maximum length of an age group stored in the vector.

Parameters

age	is identifier for the age group

Returns: maximum length

◆ minAge()

int AgeBandMatrix::minAge ( ) const

inline

This will return the minimum age of the population stored in the vector.

Returns: minimum age

◆ minLength()

int AgeBandMatrix::minLength ( int age ) const

inline

This will return the minimum length of an age group stored in the vector.

Parameters

age	is identifier for the age group

Returns: minimum length

◆ Multiply()

void AgeBandMatrix::Multiply ( const DoubleVector & Ratio )

This function will multiply each element stored in the vector by a constant.

Parameters

Ratio is the DoubleVector of multiplicative constants

◆ Nrow()

int AgeBandMatrix::Nrow ( ) const

inline

This will return the number of rows of the vector.

Returns: the number of rows of the vector

◆ operator[]() [1/2]

PopInfoIndexVector& AgeBandMatrix::operator[] ( int age )

inline

This will return the value of an element of the vector.

Parameters

age	is the element of the vector to be returned

Returns: the value of the specified element

◆ operator[]() [2/2]

const PopInfoIndexVector& AgeBandMatrix::operator[] ( int age ) const

inline

This will return the value of an element of the vector.

Parameters

age	is the element of the vector to be returned

Returns: the value of the specified element

◆ printNumbers()

void AgeBandMatrix::printNumbers ( ofstream & outfile ) const

This function will print the numbers of the population stored in the vector.

Parameters

outfile is the ofstream that all the model information gets sent to

◆ printWeights()

void AgeBandMatrix::printWeights ( ofstream & outfile ) const

This function will print the mean weights of the population stored in the vector.

Parameters

outfile is the ofstream that all the model information gets sent to

◆ setToZero()

void AgeBandMatrix::setToZero ( )

This function will set the population stored in the vector to zero.

◆ Subtract()

void AgeBandMatrix::Subtract	(	const DoubleVector &	Ratio,
		const ConversionIndex &	CI
	)

This function will subtract a multiplicative ratio from each element stored in the vector.

Parameters

Ratio	is the DoubleVector of multiplicative constants
CI	is the ConversionIndex that will convert between the length groups of the 2 vectors

◆ sumColumns()

void AgeBandMatrix::sumColumns ( PopInfoVector & Result ) const

This function will sum the columns of each element stored in the vector (ie sum over all ages for each length group of the population)

Parameters

Result is the PopInfoVector containing the sum over all ages for each length

Member Data Documentation

◆ minage

int AgeBandMatrix::minage

protected

This is the index for the vector.

◆ nrow

int AgeBandMatrix::nrow

protected

This is number of rows of the vector.

◆ v

PopInfoIndexVector** AgeBandMatrix::v

protected

This is the indexed vector of PopInfoIndexVector values.

The documentation for this class was generated from the following files:
