This is the class used to convert information from one LengthGroupDivision length structure to a second LengthGroupDivision length structure. More...

#include <conversionindex.h>

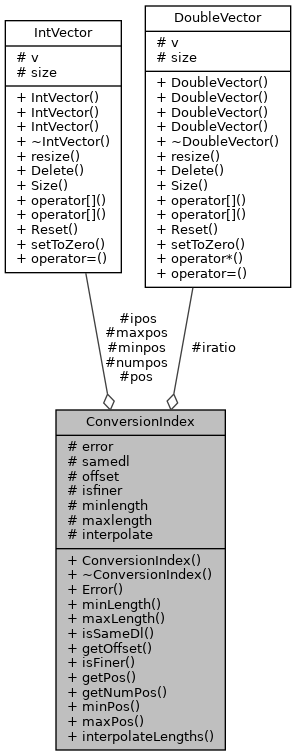

Collaboration diagram for ConversionIndex:

Public Member Functions
	ConversionIndex (const LengthGroupDivision const L1, const LengthGroupDivision const L2, int interp=0)
	This is the ConversionIndex constructor. More...

	~ConversionIndex ()
	This is the default ConversionIndex destructor. More...

int	Error () const
	This function will return the flag denoting whether an error has occured or not. More...

int	minLength () const
	This function will return the minimum length group that is contained in both LengthGroupDivision objects. More...

int	maxLength () const
	This function will return the maximum length group that is contained in both LengthGroupDivision objects. More...

int	isSameDl () const
	This function will return the flag denoting whether the 2 LengthGroupDivision objects have the same length group structure or not. More...

int	getOffset () const
	This function will return the offset that specifies the different starting points for 2 LengthGroupDivision objects that have the same length group structure. More...

int	isFiner () const
	This function will return the flag denoting whether the target LengthGroupDivision object has a finer length group structure or not. More...

int	getPos (int i) const
	This function will return the index in the coarser length group for an entry in the finer length group. More...

int	getNumPos (int i) const
	This function will return the number of finer length groups in the coarser length group for an entry in the finer length group. More...

int	minPos (int i) const
	This function will return the minimum index in the finer length group for an entry in the coarser length group. More...

int	maxPos (int i) const
	This function will return the maximum index in the finer length group for an entry in the coarser length group. More...

void	interpolateLengths (DoubleVector &Vf, const DoubleVector &Vc)
	This function will interpolate values defined for a coarser length division onto a finer length division. More...

Protected Attributes
int	error
	This is the flag to denote whether an error has occured or not. More...

int	samedl
	This is the flag to denote whether the 2 LengthGroupDivision objects have the same length group structure. More...

int	offset
	This is the difference in the minimum lengths if the 2 LengthGroupDivision objects have the same length group structure. More...

int	isfiner
	This is the flag to denote whether the target (L2) LengthGroupDivision object has a finer or coarser length group structure. More...

int	minlength
	This is the minimum length group that is contained in both LengthGroupDivision objects. More...

int	maxlength
	This is the maximum length group that is contained in both LengthGroupDivision objects. More...

int	interpolate
	This is the flag to denote whether the ConversionIndex will be used to interpolate between the 2 LengthGroupDivision objects. More...

IntVector	pos
	This is the IntVector of the indices used to convert between the length groups. More...

IntVector	numpos
	This is the IntVector of the number of finer length groups in each coarser length group. More...

IntVector	minpos
	This is the IntVector of minimum index in the finer length group for each coarser length group. More...

IntVector	maxpos
	This is the IntVector of maximum index in the finer length group for each coarser length group. More...

DoubleVector	iratio
	This is the DoubleVector of the ratios used when interpolating between the length groups. More...

IntVector	ipos
	This is the IntVector of the indices used when interpolating between the length groups. More...

Detailed Description

This is the class used to convert information from one LengthGroupDivision length structure to a second LengthGroupDivision length structure.

Constructor & Destructor Documentation

◆ ConversionIndex()

ConversionIndex::ConversionIndex	(	const LengthGroupDivision *const	L1,
		const LengthGroupDivision *const	L2,
		int	interp = `0`
	)

This is the ConversionIndex constructor.

Parameters

L1	is the first LengthGroupDivision
L2	is the second LengthGroupDivision
interp	is the flag to denote whether the ConversionIndex will be used to interpolate between the 2 LengthGroupDivision objects (default value 0)

◆ ~ConversionIndex()

ConversionIndex::~ConversionIndex ( )

inline

This is the default ConversionIndex destructor.

Member Function Documentation

◆ Error()

int ConversionIndex::Error ( ) const

inline

This function will return the flag denoting whether an error has occured or not.

Returns: error

◆ getNumPos()

int ConversionIndex::getNumPos ( int i ) const

inline

This function will return the number of finer length groups in the coarser length group for an entry in the finer length group.

Parameters

i	is the index in the finer length group

Returns: numpos for finer length group i

◆ getOffset()

int ConversionIndex::getOffset ( ) const

inline

This function will return the offset that specifies the different starting points for 2 LengthGroupDivision objects that have the same length group structure.

Returns: offset

◆ getPos()

int ConversionIndex::getPos ( int i ) const

inline

This function will return the index in the coarser length group for an entry in the finer length group.

Parameters

i	is the index in the finer length group

Returns: pos for finer length group i

◆ interpolateLengths()

void ConversionIndex::interpolateLengths	(	DoubleVector &	Vf,
		const DoubleVector &	Vc
	)

This function will interpolate values defined for a coarser length division onto a finer length division.

Parameters

Vf	is the DoubleVector that will contain the finer values after the interpolation
Vc	is the DoubleVector of the coarser values to interpolate from

◆ isFiner()

int ConversionIndex::isFiner ( ) const

inline

This function will return the flag denoting whether the target LengthGroupDivision object has a finer length group structure or not.

Returns: isfiner

◆ isSameDl()

int ConversionIndex::isSameDl ( ) const

inline

This function will return the flag denoting whether the 2 LengthGroupDivision objects have the same length group structure or not.

Returns: samedl

◆ maxLength()

int ConversionIndex::maxLength ( ) const

inline

This function will return the maximum length group that is contained in both LengthGroupDivision objects.

Returns: maxlength

◆ maxPos()

int ConversionIndex::maxPos ( int i ) const

inline

This function will return the maximum index in the finer length group for an entry in the coarser length group.

Parameters

i	is the index in the coarser length group

Returns: maxpos for coarser length group i

◆ minLength()

int ConversionIndex::minLength ( ) const

inline

This function will return the minimum length group that is contained in both LengthGroupDivision objects.

Returns: minlength

◆ minPos()

int ConversionIndex::minPos ( int i ) const

inline

This function will return the minimum index in the finer length group for an entry in the coarser length group.

Parameters

i	is the index in the coarser length group

Returns: minpos for coarser length group i

Member Data Documentation

◆ error

int ConversionIndex::error

protected

This is the flag to denote whether an error has occured or not.

◆ interpolate

int ConversionIndex::interpolate

protected

This is the flag to denote whether the ConversionIndex will be used to interpolate between the 2 LengthGroupDivision objects.

◆ ipos

IntVector ConversionIndex::ipos

protected

This is the IntVector of the indices used when interpolating between the length groups.

Note: This vector is resized to be the same length as the finer LengthGroupDivision object and is only used if the interpolate flag has been set

◆ iratio

DoubleVector ConversionIndex::iratio

protected

This is the DoubleVector of the ratios used when interpolating between the length groups.

Note: This vector is resized to be the same length as the finer LengthGroupDivision object and is only used if the interpolate flag has been set

◆ isfiner

int ConversionIndex::isfiner

protected

This is the flag to denote whether the target (L2) LengthGroupDivision object has a finer or coarser length group structure.

◆ maxlength

int ConversionIndex::maxlength

protected

This is the maximum length group that is contained in both LengthGroupDivision objects.

◆ maxpos

IntVector ConversionIndex::maxpos

protected

This is the IntVector of maximum index in the finer length group for each coarser length group.

Note: This vector is resized to be the same length as the coarser LengthGroupDivision object

◆ minlength

int ConversionIndex::minlength

protected

This is the minimum length group that is contained in both LengthGroupDivision objects.

◆ minpos

IntVector ConversionIndex::minpos

protected

This is the IntVector of minimum index in the finer length group for each coarser length group.

Note: This vector is resized to be the same length as the coarser LengthGroupDivision object

◆ numpos

IntVector ConversionIndex::numpos

protected

This is the IntVector of the number of finer length groups in each coarser length group.

Note: This vector is resized to be the same length as the finer LengthGroupDivision object and is only used if the isfiner flag has been set

◆ offset

int ConversionIndex::offset

protected

This is the difference in the minimum lengths if the 2 LengthGroupDivision objects have the same length group structure.

◆ pos

IntVector ConversionIndex::pos

protected

This is the IntVector of the indices used to convert between the length groups.

Note: This vector is resized to be the same length as the finer LengthGroupDivision object

◆ samedl

int ConversionIndex::samedl

protected

This is the flag to denote whether the 2 LengthGroupDivision objects have the same length group structure.

The documentation for this class was generated from the following files:

src/include/conversionindex.h
src/conversionindex.cc
