AreaClass Class Reference

This is the class used to store information about the areas used for the current model. More...

#include <areatime.h>

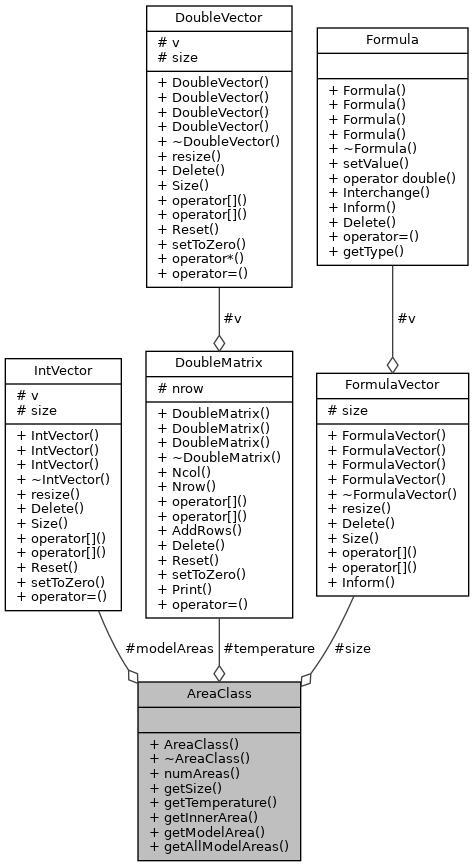

Collaboration diagram for AreaClass:
Collaboration graph

Public Member Functions

 AreaClass (CommentStream &infile, Keeper *const keeper, const TimeClass *const TimeInfo)
 This is the AreaClass constructor. More...

 ~AreaClass ()
 This is the default AreaClass destructor. More...

int numAreas () const
 This will return the number of areas for the current model. More...

double getSize (int area) const
 This will return the size of an area. More...

double getTemperature (int area, int time) const
 This will return the temperature of an area on a timestep. More...

int getInnerArea (int area) const
 This will return the internal identifier of an area. More...

int getModelArea (int area) const
 This will return the external identifier of an area. More...

const IntVectorgetAllModelAreas () const
 This will return the the IntVector of all the areas in the current model. More...


Protected Attributes

IntVector modelAreas
 This is the IntVector of the areas in the current model. More...

FormulaVector size
 This is the FormulaVector of the size of the areas in the current model. More...

DoubleMatrix temperature
 This is the DoubleMatrix of the temperature, for each timestep, of the areas in the current model. More...


Detailed Description

This is the class used to store information about the areas used for the current model.

This class keeps an index of the areas in the model. The areas are read in with a numerical identifier, which is stored along with an internal identifier for the areas, which is a simple index starting from 0.

Constructor & Destructor Documentation

◆ AreaClass()

AreaClass::AreaClass ( CommentStream infile,
Keeper *const  keeper,
const TimeClass *const  TimeInfo
)

This is the AreaClass constructor.

Parameters
infileis the CommentStream to read the area data from
keeperis the Keeper for the current model
TimeInfois the TimeClass for the current model

◆ ~AreaClass()

AreaClass::~AreaClass ( )
inline

This is the default AreaClass destructor.

Member Function Documentation

◆ getAllModelAreas()

const IntVector& AreaClass::getAllModelAreas ( ) const
inline

This will return the the IntVector of all the areas in the current model.

Returns
modelAreas

◆ getInnerArea()

int AreaClass::getInnerArea ( int  area) const

This will return the internal identifier of an area.

Parameters
areais the identifier for the required area
Returns
innerarea

◆ getModelArea()

int AreaClass::getModelArea ( int  area) const
inline

This will return the external identifier of an area.

Parameters
areais the identifier for the required area
Returns
outerarea

◆ getSize()

double AreaClass::getSize ( int  area) const
inline

This will return the size of an area.

Parameters
areais the identifier for the required area
Returns
size

◆ getTemperature()

double AreaClass::getTemperature ( int  area,
int  time
) const
inline

This will return the temperature of an area on a timestep.

Parameters
areais the identifier for the required area
timeis the identifier for the required timestep
Returns
temperature

◆ numAreas()

int AreaClass::numAreas ( ) const
inline

This will return the number of areas for the current model.

Returns
number

Member Data Documentation

◆ modelAreas

IntVector AreaClass::modelAreas
protected

This is the IntVector of the areas in the current model.

◆ size

FormulaVector AreaClass::size
protected

This is the FormulaVector of the size of the areas in the current model.

◆ temperature

DoubleMatrix AreaClass::temperature
protected

This is the DoubleMatrix of the temperature, for each timestep, of the areas in the current model.


The documentation for this class was generated from the following files:
