This is the class used to calculate the affect of the spawning process on the stock, possibly including the creation of new recruits into the model. More...

#include <spawner.h>

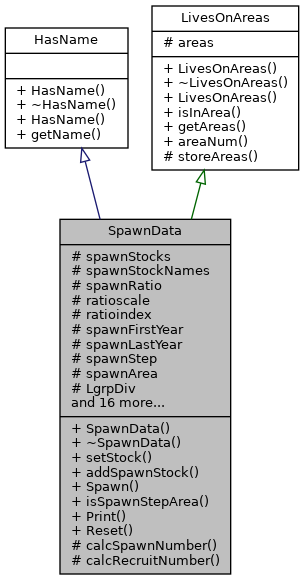

Inheritance diagram for SpawnData:

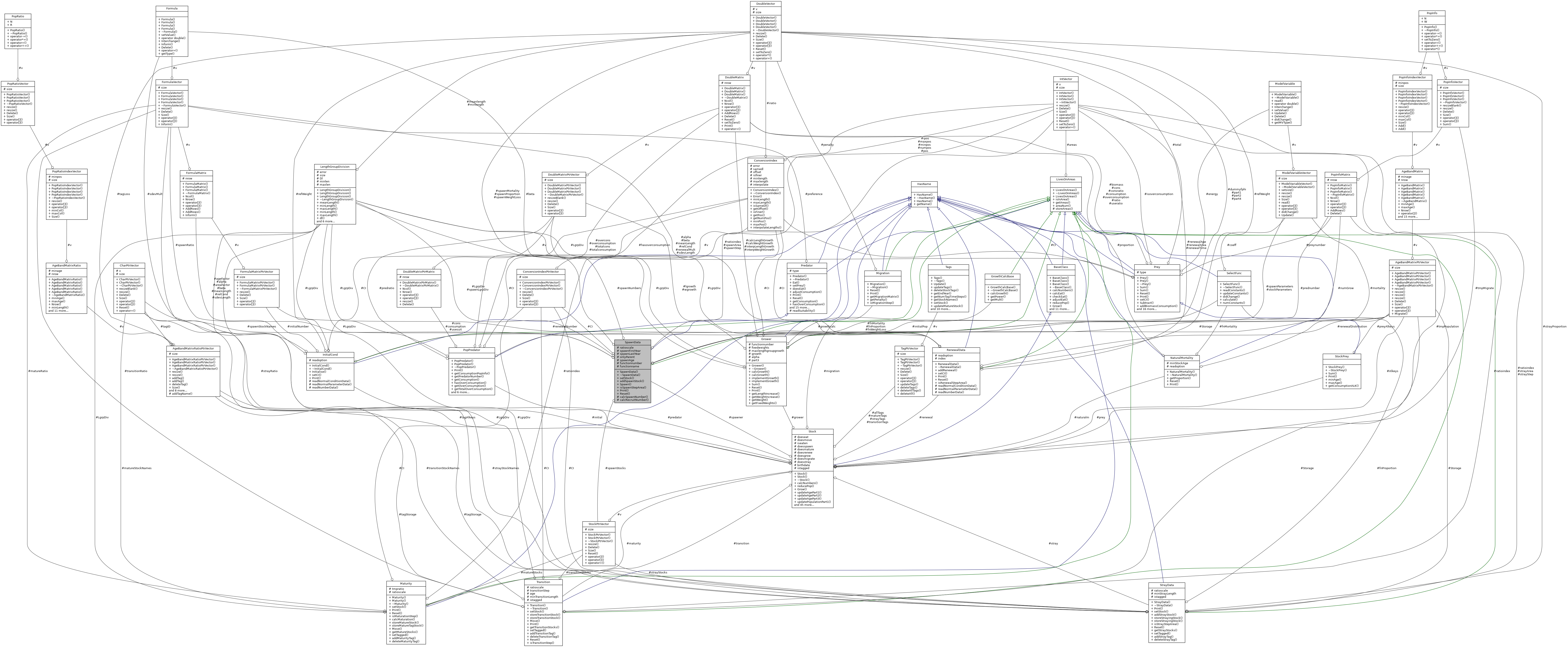

Collaboration diagram for SpawnData:

Public Member Functions
	SpawnData (CommentStream &infile, int maxage, const LengthGroupDivision const LgrpDiv, const IntVector &Areas, const AreaClass const Area, const char givenname, const TimeClass const TimeInfo, Keeper *const keeper)
	This is the SpawnData constructor. More...

	~SpawnData ()
	This is the default SpawnData destructor. More...

void	setStock (StockPtrVector &stockvec)
	This will select the stocks required for the spawning process. More...

void	addSpawnStock (int area, const TimeClass *const TimeInfo)
	This will add the calculated spawned stock into the new stock age-length cells. More...

void	Spawn (AgeBandMatrix &Alkeys, int area, const TimeClass *const TimeInfo)
	This will calculate the. More...

int	isSpawnStepArea (int area, const TimeClass *const TimeInfo)
	This will check if the spawning process will take place on the current timestep and area. More...

void	Print (ofstream &outfile) const
	This function will print the spawning information. More...

void	Reset (const TimeClass *const TimeInfo)
	This function will reset the spawning data. More...

Public Member Functions inherited from HasName
	HasName ()
	This is the default HasName constructor. More...

virtual	~HasName ()
	This is the default HasName destructor. More...

	HasName (const char *givenname)
	This is the HasName constructor for a specified name. More...

const char *	getName () const
	This will return a null terminated text string containing the name of the object. More...

Protected Member Functions
double	calcSpawnNumber (int age, int len, double number, double weight)
	This function will calculate the number of recruits that will be created by the spawning process on the current timestep, for a given age-length cell of the spawning stock. More...

double	calcRecruitNumber (double temp, int inarea)
	This function will calculate the total number of recruits that have been created by the spawning process on the current timestep. More...

Protected Member Functions inherited from LivesOnAreas
void	storeAreas (const IntVector &Areas)
	This function will store the internal areas to be used. More...

	LivesOnAreas ()
	This is the default LivesOnAreas constructor. More...

virtual	~LivesOnAreas ()
	This is the default LivesOnAreas destructor. More...

	LivesOnAreas (const IntVector &Areas)
	This is the LivesOnAreas constructor for a specified vector of areas. More...

int	isInArea (int area) const
	This function will check whether the object is defined on a specified area. More...

IntVector &	getAreas ()
	This function will return the internal areas that the object is defined on. More...

int	areaNum (int area) const
	This function will return the area associated with an internal area. More...

Protected Attributes
StockPtrVector	spawnStocks
	This is the StockPtrVector of the stocks that will be spawned. More...

CharPtrVector	spawnStockNames
	This is the CharPtrVector of the names of the spawned stocks. More...

FormulaVector	spawnRatio
	This is the FormulaVector of the ratio of the new stock to move into each spawned stock. More...

double	ratioscale
	This is used to scale the ratios to ensure that they will always sum to 1. More...

IntVector	ratioindex
	This is the IntVector used as an index for the ratio vector. More...

int	spawnFirstYear
	This is the first year of the simulation that the spawning will take place on. More...

int	spawnLastYear
	This is the last year of the simulation that the spawning will take place on. More...

IntVector	spawnStep
	This is the IntVector used to store information about the steps when the spawning takes place. More...

IntVector	spawnArea
	This is the IntVector used to store information about the areas where the spawning takes place. More...

LengthGroupDivision *	LgrpDiv
	This is the LengthGroupDivision of the stock. More...

DoubleVector	spawnProportion
	This is the DoubleVector of the proportion of each length group of the stock that will spawn. More...

DoubleVector	spawnMortality
	This is the DoubleVector of the proportion of each length group of the stock that will die due to the spawning process. More...

DoubleVector	spawnWeightLoss
	This is the DoubleVector of the weight loss of each length group of the stock due to the spawning process. More...

SelectFunc *	fnProportion
	This is the SelectFunc used to calculate of the proportion of each length group of the stock that will spawn. More...

SelectFunc *	fnMortality
	This is the SelectFunc used to calculate of the proportion of each length group of the stock that will die due to the spawning process. More...

SelectFunc *	fnWeightLoss
	This is the SelectFunc used to calculate of the weight loss of each length group of the stock due to the spawning process. More...

AgeBandMatrixPtrVector	Storage
	This is the AgeBandMatrixPtrVector used to store the calculated spawned stocks. More...

ConversionIndexPtrVector	CI
	This is the ConversionIndexPtrVector used to convert to the stock lengths for the spawned stock. More...

LengthGroupDivision *	spawnLgrpDiv
	This is the LengthGroupDivision of the spawned stock. More...

DoubleMatrixPtrVector	spawnNumbers
	This is the DoubleMatrix used to store the numbers of the recruits, if the spawning process is to include the creation of the recruits. More...

ModelVariableVector	spawnParameters
	This is the ModelVariableVector used to store the parameters when calculating the recruitment from the spawning process, if the spawning process is to include the creation of the recruits. More...

ModelVariableVector	stockParameters
	This is the ModelVariableVector used to store the parameters when calculating the recruits, if the spawning process is to include the creation of the recruits. More...

int	onlyParent
	This is the flag used to denote whether the spawning process should include the creation of the recruits. More...

int	spawnAge
	This is the age that the spawned stock will move into the new stocks. More...

int	functionnumber
	This is the identifier of the function to be used to calculate the number of recruits. More...

char *	functionname
	This is the name of the function to be used to calculate the number of recruits. More...

Protected Attributes inherited from LivesOnAreas
IntVector	areas
	This is the IntVector of internal areas that the object is defined on. More...

Detailed Description

This is the class used to calculate the affect of the spawning process on the stock, possibly including the creation of new recruits into the model.

This class calculates the proportion of the stock that should be removed from the model due to the spawning process, and the affect that the spawning process has on the remaining stock. This class can optionally add new recruits into the model due to the spawning process, implementing a closed life cycle model. For the 'parent' stock, the spawning process can remove a proportion of the stock due to a spawning mortality, and reduce the weight of those that survive. For the 'child' stock, the spawning process will create a number of recruits based on a recruitment function, and then add these into the model in a similar way to the RenewalData class.

Constructor & Destructor Documentation

◆ SpawnData()

SpawnData::SpawnData	(	CommentStream &	infile,
		int	maxage,
		const LengthGroupDivision *const	LgrpDiv,
		const IntVector &	Areas,
		const AreaClass *const	Area,
		const char *	givenname,
		const TimeClass *const	TimeInfo,
		Keeper *const	keeper
	)

This is the SpawnData constructor.

Parameters

infile	is the CommentStream to read the spawning data from
maxage	is the maximum age of the spawning stock
LgrpDiv	is the LengthGroupDivision that the spawning stock will be calculated on
Areas	is the IntVector of areas that the spawning stock will be calculated on
Area	is the AreaClass for the current model
givenname	is the name of the stock for this SpawnData class
TimeInfo	is the TimeClass for the current model
keeper	is the Keeper for the current model

◆ ~SpawnData()

SpawnData::~SpawnData ( )

This is the default SpawnData destructor.

Member Function Documentation

◆ addSpawnStock()

void SpawnData::addSpawnStock	(	int	area,
		const TimeClass *const	TimeInfo
	)

This will add the calculated spawned stock into the new stock age-length cells.

Parameters

area	is the area that the spawning process is being calculated on
TimeInfo	is the TimeClass for the current model

◆ calcRecruitNumber()

double SpawnData::calcRecruitNumber	(	double	temp,
		int	inarea
	)

protected

This function will calculate the total number of recruits that have been created by the spawning process on the current timestep.

Parameters

temp	is the current temperature
inarea	is the current area identifier

Returns: total number of recruits

◆ calcSpawnNumber()

double SpawnData::calcSpawnNumber	(	int	age,
		int	len,
		double	number,
		double	weight
	)

protected

This function will calculate the number of recruits that will be created by the spawning process on the current timestep, for a given age-length cell of the spawning stock.

Parameters

age	is the age of the spawning stock
len	is the length of the spawning stock
number	is the number of the spawning stock in the age-length cell
weight	is the weight of the spawning stock in the age-length cell

Returns: number of recruits

◆ isSpawnStepArea()

int SpawnData::isSpawnStepArea	(	int	area,
		const TimeClass *const	TimeInfo
	)

This will check if the spawning process will take place on the current timestep and area.

Parameters

area	is the area that the spawning is being calculated on
TimeInfo	is the TimeClass for the current model

Returns: 1 if the spawning process will take place, 0 otherwise

◆ Print()

void SpawnData::Print ( ofstream & outfile ) const

This function will print the spawning information.

Parameters

outfile is the ofstream that all the model information gets sent to

◆ Reset()

void SpawnData::Reset ( const TimeClass *const TimeInfo )

This function will reset the spawning data.

◆ setStock()

void SpawnData::setStock ( StockPtrVector & stockvec )

This will select the stocks required for the spawning process.

Parameters

stockvec is the StockPtrVector of all the available stocks

◆ Spawn()

void SpawnData::Spawn	(	AgeBandMatrix &	Alkeys,
		int	area,
		const TimeClass *const	TimeInfo
	)

This will calculate the.

Parameters

Alkeys	is the AgeBandMatrix of the spawning stock
area	is the area that the transition is being calculated on
TimeInfo	is the TimeClass for the current model

Member Data Documentation

◆ CI

ConversionIndexPtrVector SpawnData::CI

protected

This is the ConversionIndexPtrVector used to convert to the stock lengths for the spawned stock.

◆ fnMortality

SelectFunc* SpawnData::fnMortality

protected

This is the SelectFunc used to calculate of the proportion of each length group of the stock that will die due to the spawning process.

◆ fnProportion

SelectFunc* SpawnData::fnProportion

protected

This is the SelectFunc used to calculate of the proportion of each length group of the stock that will spawn.

◆ fnWeightLoss

SelectFunc* SpawnData::fnWeightLoss

protected

This is the SelectFunc used to calculate of the weight loss of each length group of the stock due to the spawning process.

◆ functionname

char* SpawnData::functionname

protected

This is the name of the function to be used to calculate the number of recruits.

◆ functionnumber

int SpawnData::functionnumber

protected

This is the identifier of the function to be used to calculate the number of recruits.

◆ LgrpDiv

LengthGroupDivision* SpawnData::LgrpDiv

protected

This is the LengthGroupDivision of the stock.

◆ onlyParent

int SpawnData::onlyParent

protected

This is the flag used to denote whether the spawning process should include the creation of the recruits.

◆ ratioindex

IntVector SpawnData::ratioindex

protected

This is the IntVector used as an index for the ratio vector.

◆ ratioscale

double SpawnData::ratioscale

protected

This is used to scale the ratios to ensure that they will always sum to 1.

◆ spawnAge

int SpawnData::spawnAge

protected

This is the age that the spawned stock will move into the new stocks.

◆ spawnArea

IntVector SpawnData::spawnArea

protected

This is the IntVector used to store information about the areas where the spawning takes place.

◆ spawnFirstYear

int SpawnData::spawnFirstYear

protected

This is the first year of the simulation that the spawning will take place on.

Note: This is optional, and will default to the first year of the simulation if it is not specified

◆ spawnLastYear

int SpawnData::spawnLastYear

protected

This is the last year of the simulation that the spawning will take place on.

Note: This is optional, and will default to the last year of the simulation if it is not specified

◆ spawnLgrpDiv

LengthGroupDivision* SpawnData::spawnLgrpDiv

protected

This is the LengthGroupDivision of the spawned stock.

◆ spawnMortality

DoubleVector SpawnData::spawnMortality

protected

This is the DoubleVector of the proportion of each length group of the stock that will die due to the spawning process.

◆ spawnNumbers

DoubleMatrixPtrVector SpawnData::spawnNumbers

protected

This is the DoubleMatrix used to store the numbers of the recruits, if the spawning process is to include the creation of the recruits.

◆ spawnParameters

ModelVariableVector SpawnData::spawnParameters

protected

This is the ModelVariableVector used to store the parameters when calculating the recruitment from the spawning process, if the spawning process is to include the creation of the recruits.

◆ spawnProportion

DoubleVector SpawnData::spawnProportion

protected

This is the DoubleVector of the proportion of each length group of the stock that will spawn.

◆ spawnRatio

FormulaVector SpawnData::spawnRatio

protected

This is the FormulaVector of the ratio of the new stock to move into each spawned stock.

◆ spawnStep

IntVector SpawnData::spawnStep

protected

This is the IntVector used to store information about the steps when the spawning takes place.

◆ spawnStockNames

CharPtrVector SpawnData::spawnStockNames

protected

This is the CharPtrVector of the names of the spawned stocks.

◆ spawnStocks

StockPtrVector SpawnData::spawnStocks

protected

This is the StockPtrVector of the stocks that will be spawned.

◆ spawnWeightLoss

DoubleVector SpawnData::spawnWeightLoss

protected

This is the DoubleVector of the weight loss of each length group of the stock due to the spawning process.

◆ stockParameters

ModelVariableVector SpawnData::stockParameters

protected

This is the ModelVariableVector used to store the parameters when calculating the recruits, if the spawning process is to include the creation of the recruits.

◆ Storage

AgeBandMatrixPtrVector SpawnData::Storage

protected

This is the AgeBandMatrixPtrVector used to store the calculated spawned stocks.

The documentation for this class was generated from the following files:

src/include/spawner.h
src/spawner.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SpawnData()

◆ ~SpawnData()

Member Function Documentation

◆ addSpawnStock()

◆ calcRecruitNumber()

◆ calcSpawnNumber()

◆ isSpawnStepArea()

◆ Print()

◆ Reset()

◆ setStock()

◆ Spawn()

Member Data Documentation

◆ CI

◆ fnMortality

◆ fnProportion

◆ fnWeightLoss

◆ functionname

◆ functionnumber

◆ LgrpDiv

◆ onlyParent

◆ ratioindex

◆ ratioscale

◆ spawnAge

◆ spawnArea

◆ spawnFirstYear

◆ spawnLastYear

◆ spawnLgrpDiv

◆ spawnMortality

◆ spawnNumbers

◆ spawnParameters

◆ spawnProportion

◆ spawnRatio

◆ spawnStep

◆ spawnStockNames

◆ spawnStocks

◆ spawnWeightLoss

◆ stockParameters

◆ Storage
