This is the base class for any object that can be dynamically modelled within Gadget. More...

#include <base.h>

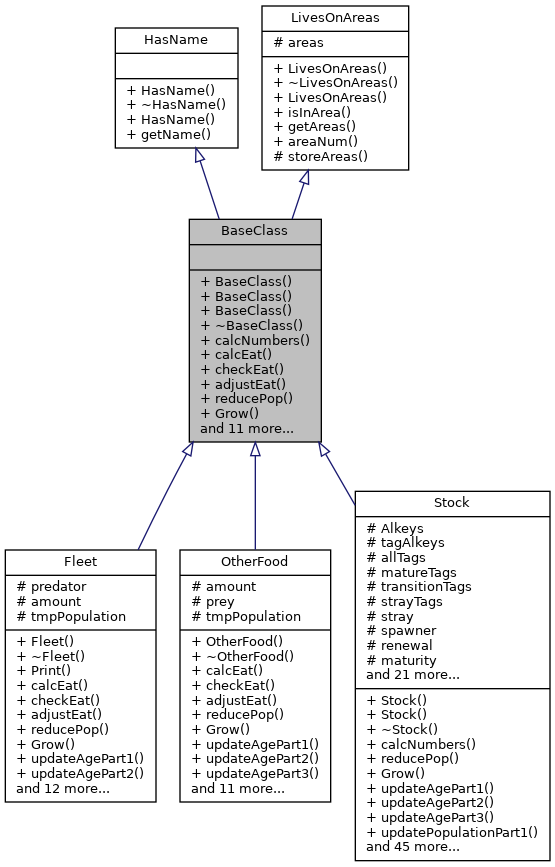

Inheritance diagram for BaseClass:

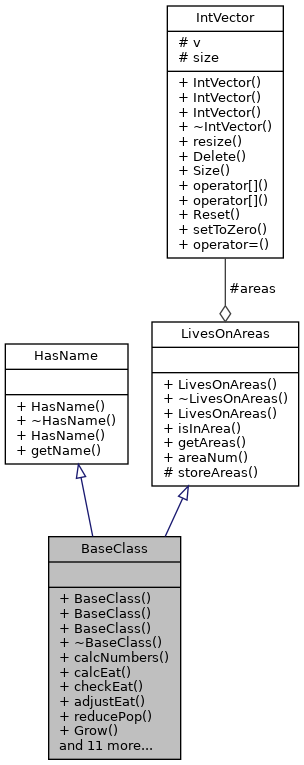

Collaboration diagram for BaseClass:

Public Member Functions
	BaseClass ()
	This is the default BaseClass constructor. More...

	BaseClass (const char *givenname)
	This is the BaseClass constructor for an object with a name. More...

	BaseClass (const char *givenname, const IntVector &Areas)
	This is the BaseClass constructor for an object with a name and an area. More...

virtual	~BaseClass ()
	This is the default BaseClass destructor. More...

virtual void	calcNumbers (int area, const TimeClass *const TimeInfo)=0
	This function will update the model population for an area in the model. More...

virtual void	calcEat (int area, const AreaClass const Area, const TimeClass const TimeInfo)=0
	This function will calculate the modelled consumption for an area in the model. More...

virtual void	checkEat (int area, const TimeClass *const TimeInfo)=0
	This function will check the modelled consumption for an area in the model. More...

virtual void	adjustEat (int area, const TimeClass *const TimeInfo)=0
	This function will adjust the modelled consumption for an area in the model. More...

virtual void	reducePop (int area, const TimeClass *const TimeInfo)=0
	This function will reduce the model population for an area in the model. More...

virtual void	Grow (int area, const AreaClass const Area, const TimeClass const TimeInfo)=0
	This function will calculate the growth of the model population for an area in the model. More...

virtual void	updateAgePart1 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate any transition of the model population for an area in the model. More...

virtual void	updateAgePart2 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate the age increase of the model population for an area in the model. More...

virtual void	updateAgePart3 (int area, const TimeClass *const TimeInfo)=0
	This function will implement the transiton of the model population for an area in the model. More...

virtual void	updatePopulationPart1 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate the spawning of the model population for an area in the model. More...

virtual void	updatePopulationPart2 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate add the newly matured stock into the model population for an area in the model. More...

virtual void	updatePopulationPart3 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate add the new recruits into the model population for an area in the model. More...

virtual void	updatePopulationPart4 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate calculate the straying of the model population for an area in the model. More...

virtual void	updatePopulationPart5 (int area, const TimeClass *const TimeInfo)=0
	This function will calculate add the strayed stock into the model population for an area in the model. More...

virtual void	Migrate (const TimeClass *const TimeInfo)=0
	This function will implement the migration of the model population for the model. More...

virtual void	Reset (const TimeClass *const TimeInfo)=0
	This function will reset the model population. More...

virtual void	Print (ofstream &outfile) const =0
	This function will print the model population. More...

Public Member Functions inherited from HasName
	HasName ()
	This is the default HasName constructor. More...

virtual	~HasName ()
	This is the default HasName destructor. More...

	HasName (const char *givenname)
	This is the HasName constructor for a specified name. More...

const char *	getName () const
	This will return a null terminated text string containing the name of the object. More...

Public Member Functions inherited from LivesOnAreas
	LivesOnAreas ()
	This is the default LivesOnAreas constructor. More...

virtual	~LivesOnAreas ()
	This is the default LivesOnAreas destructor. More...

	LivesOnAreas (const IntVector &Areas)
	This is the LivesOnAreas constructor for a specified vector of areas. More...

int	isInArea (int area) const
	This function will check whether the object is defined on a specified area. More...

IntVector &	getAreas ()
	This function will return the internal areas that the object is defined on. More...

int	areaNum (int area) const
	This function will return the area associated with an internal area. More...

Additional Inherited Members
Protected Member Functions inherited from LivesOnAreas
void	storeAreas (const IntVector &Areas)
	This function will store the internal areas to be used. More...

Protected Attributes inherited from LivesOnAreas
IntVector	areas
	This is the IntVector of internal areas that the object is defined on. More...

Detailed Description

This is the base class for any object that can be dynamically modelled within Gadget.

Note: This will always be overridden by the derived classes (either Stock, Fleet or OtherFood)

Constructor & Destructor Documentation

◆ BaseClass() [1/3]

BaseClass::BaseClass ( )

inline

This is the default BaseClass constructor.

◆ BaseClass() [2/3]

BaseClass::BaseClass ( const char * givenname )

inline

This is the BaseClass constructor for an object with a name.

Parameters

givenname is a text string containing the name of the object to be created

◆ BaseClass() [3/3]

BaseClass::BaseClass	(	const char *	givenname,
		const IntVector &	Areas
	)

inline

This is the BaseClass constructor for an object with a name and an area.

Parameters

givenname	is a text string containing the name of the object to be created
Areas	is the IntVector of internal areas to be used

◆ ~BaseClass()

virtual BaseClass::~BaseClass ( )

inlinevirtual

This is the default BaseClass destructor.

Member Function Documentation

◆ adjustEat()

virtual void BaseClass::adjustEat	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will adjust the modelled consumption for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ calcEat()

virtual void BaseClass::calcEat	(	int	area,
		const AreaClass *const	Area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate the modelled consumption for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
Area	is the AreaClass for the current model
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ calcNumbers()

virtual void BaseClass::calcNumbers	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will update the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ checkEat()

virtual void BaseClass::checkEat	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will check the modelled consumption for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ Grow()

virtual void BaseClass::Grow	(	int	area,
		const AreaClass *const	Area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate the growth of the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
Area	is the AreaClass for the current model
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ Migrate()

virtual void BaseClass::Migrate ( const TimeClass *const TimeInfo )

pure virtual

This function will implement the migration of the model population for the model.

Parameters

TimeInfo is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ Print()

virtual void BaseClass::Print ( ofstream & outfile ) const

pure virtual

This function will print the model population.

Parameters

outfile is the ofstream that all the model information gets sent to

Implemented in Stock, OtherFood, and Fleet.

◆ reducePop()

virtual void BaseClass::reducePop	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will reduce the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ Reset()

virtual void BaseClass::Reset ( const TimeClass *const TimeInfo )

pure virtual

This function will reset the model population.

Parameters

TimeInfo is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updateAgePart1()

virtual void BaseClass::updateAgePart1	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate any transition of the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updateAgePart2()

virtual void BaseClass::updateAgePart2	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate the age increase of the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updateAgePart3()

virtual void BaseClass::updateAgePart3	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will implement the transiton of the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updatePopulationPart1()

virtual void BaseClass::updatePopulationPart1	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate the spawning of the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updatePopulationPart2()

virtual void BaseClass::updatePopulationPart2	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate add the newly matured stock into the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updatePopulationPart3()

virtual void BaseClass::updatePopulationPart3	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate add the new recruits into the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updatePopulationPart4()

virtual void BaseClass::updatePopulationPart4	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate calculate the straying of the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

◆ updatePopulationPart5()

virtual void BaseClass::updatePopulationPart5	(	int	area,
		const TimeClass *const	TimeInfo
	)

pure virtual

This function will calculate add the strayed stock into the model population for an area in the model.

Parameters

area	is an integer to denote the internal area of interest
TimeInfo	is the TimeClass for the current model

Implemented in Stock, OtherFood, and Fleet.

The documentation for this class was generated from the following file:

src/include/base.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BaseClass() [1/3]

◆ BaseClass() [2/3]

◆ BaseClass() [3/3]

◆ ~BaseClass()

Member Function Documentation

◆ adjustEat()

◆ calcEat()

◆ calcNumbers()

◆ checkEat()

◆ Grow()

◆ Migrate()

◆ Print()

◆ reducePop()

◆ Reset()

◆ updateAgePart1()

◆ updateAgePart2()

◆ updateAgePart3()

◆ updatePopulationPart1()

◆ updatePopulationPart2()

◆ updatePopulationPart3()

◆ updatePopulationPart4()

◆ updatePopulationPart5()
