FormulaMatrix Class Reference

This class implements a dynamic vector of FormulaVector values. More...

#include <formulamatrix.h>

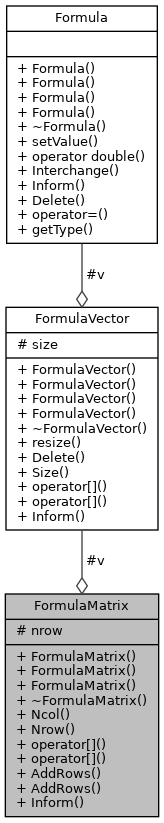

Collaboration diagram for FormulaMatrix:

Public Member Functions
	FormulaMatrix ()
	This is the default FormulaMatrix constructor. More...
	FormulaMatrix (int nr, int nc, Formula initial)
	This is the FormulaMatrix constructor for a specified size. More...
	FormulaMatrix (int nr, int nc, double initial)
	This is the FormulaMatrix constructor for a specified size. More...
	~FormulaMatrix ()
	This is the FormulaMatrix destructor. More...
int	Ncol (int i=0) const
	This will return the number of columns in row i of the vector. More...
int	Nrow () const
	This will return the number of rows of the vector. More...
FormulaVector &	operator[] (int pos)
	This will return the value of an element of the vector. More...
const FormulaVector &	operator[] (int pos) const
	This will return the value of an element of the vector. More...
void	AddRows (int add, int length, Formula value)
	This will add new entries to the vector. More...
void	AddRows (int add, int length, double value)
	This will add new entries to the vector. More...
void	Inform (Keeper *keeper)
	This function will inform Keeper of the values of the stored Formula. More...

Protected Attributes
int	nrow
	This is number of rows of the vector. More...
FormulaVector **	v
	This is the vector of FormulaVector values. More...

Detailed Description

This class implements a dynamic vector of FormulaVector values.

Constructor & Destructor Documentation

FormulaMatrix() [1/3]

FormulaMatrix::FormulaMatrix ( )

inline

This is the default FormulaMatrix constructor.

FormulaMatrix() [2/3]

FormulaMatrix::FormulaMatrix	(	int	nr,
		int	nc,
		Formula	initial
	)

This is the FormulaMatrix constructor for a specified size.

Parameters

nr	is the size of the vector to be created
nc	is the length of each row to be created (ie. the size of the FormulaVector to be created for each row)
initial	is the initial value for all the entries of the vector

FormulaMatrix() [3/3]

FormulaMatrix::FormulaMatrix	(	int	nr,
		int	nc,
		double	initial
	)

This is the FormulaMatrix constructor for a specified size.

Parameters

nr	is the size of the vector to be created
nc	is the length of each row to be created (ie. the size of the FormulaVector to be created for each row)
initial	is the initial value for all the entries of the vector

~FormulaMatrix()

FormulaMatrix::~FormulaMatrix

(

)

This is the FormulaMatrix destructor.

Note

This will free all the memory allocated to all the elements of the vector

Member Function Documentation

AddRows() [1/2]

void FormulaMatrix::AddRows	(	int	add,
		int	length,
		double	value
	)

This will add new entries to the vector.

Parameters

add	is the number of new entries to the vector
length	is the number of entries to the FormulaVector that is created
value	is the value that will be entered for the new entries

AddRows() [2/2]

void FormulaMatrix::AddRows	(	int	add,
		int	length,
		Formula	value
	)

This will add new entries to the vector.

Parameters

add	is the number of new entries to the vector
length	is the number of entries to the FormulaVector that is created
value	is the value that will be entered for the new entries

Inform()

void FormulaMatrix::Inform

(

Keeper *

keeper

)

This function will inform Keeper of the values of the stored Formula.

Parameters

keeper

is the Keeper for the current model

Ncol()

int FormulaMatrix::Ncol ( int  i = 0 ) const

inline

This will return the number of columns in row i of the vector.

Parameters

i	is the row of the vector to have the number of columns counted

Returns

the number of columns in row i of the vector

Note

This is the number of entries in the FormulaVector that is entry i of the FormulaMatrix

Nrow()

int FormulaMatrix::Nrow ( ) const

inline

This will return the number of rows of the vector.

Returns

the number of rows of the vector

operator[]() [1/2]

FormulaVector& FormulaMatrix::operator[] ( int  pos )

inline

This will return the value of an element of the vector.

Parameters

pos	is the element of the vector to be returned

Returns

the value of the specified element

operator[]() [2/2]

const FormulaVector& FormulaMatrix::operator[] ( int  pos ) const

inline

This will return the value of an element of the vector.

Parameters

pos	is the element of the vector to be returned

Returns

the value of the specified element

Member Data Documentation

nrow

int FormulaMatrix::nrow

protected

This is number of rows of the vector.

v

FormulaVector** FormulaMatrix::v

protected

This is the vector of FormulaVector values.

---

The documentation for this class was generated from the following files:

• src/include/formulamatrix.h
• src/formulamatrix.cc
